Index>Products > Window Screening

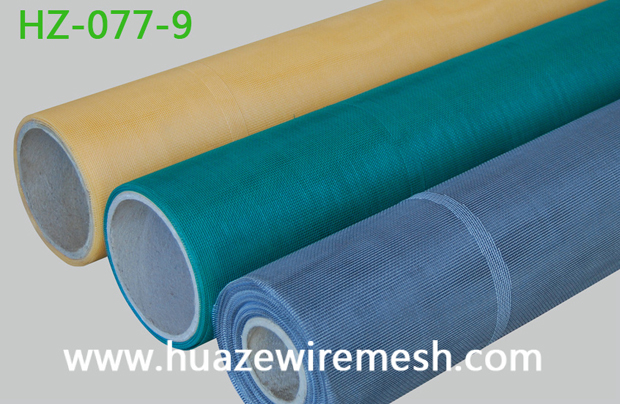

Window Screening
we can offer Window Screening or window screen in different materials, widely used in hotels and buildings to prevent insects and bugs from entering. Window screen is also written as insect screen, insect screening or wire netting.
General specifications:14mesh x 14 mesh, 16mesh x 14mesh, 16mesh x 16mesh, 18mesh x 16mesh, 18mesh x 18mesh, 18mesh x 14mesh General wire diameter: BWG31 or BWG 32.

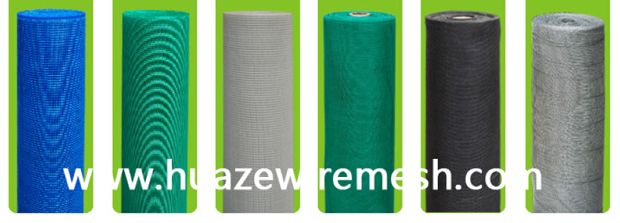

Wire Netting Variety: Enameled window screen wire netting, galvanized, stainless steel, aluminum alloy, plastic, fiberglass screen, etc.
| Specification List of Window Screen Netting | |||||||||
| Variety | Specification | Technical Notes | |||||||
| Mesh/Inch | Wire Gauge | Roll Size | |||||||
| Gal.Iron Wire Netting | 10 x 10 | BWG31 BWG32 BWG33 BWG34 |
| Process: Electric galvanized after weaving
| |||||
| 14 x 14 | |||||||||
| 16 x 16 | |||||||||
| 18 x 18 | |||||||||
| 18 x 14 | |||||||||
| 22 x 22 | |||||||||
| 24 x 24 | |||||||||
Lacquer wire window screen | Same as above | Green or dark green | |||||||
Aluminum iron window screen | Same as above | Silver | |||||||
Aluminum Wire Netting | Same as above | Material: Al-mg alloy or pure aluminum varnish aluminium window screen (epoxy paint) | |||||||
Fiberglass Wire Netting | 12 x 12 | BWG31 | 3"x100" | Available in different colors | |||||
14 x 14 | |||||||||
16 x 16 | |||||||||
16 x 14 | |||||||||
PVC Wire Netting | 12x 12 | As above | weave feature:12mesh 14mesh 16mesh are twisted fabric 18mesh 22mesh 24mesh are plain weave white blue green
| ||||||
14 x 14 | |||||||||
16 x 16 | |||||||||
18 x 18 | |||||||||
18 x 14 | |||||||||
20 x 20 | |||||||||
Stainless Steel Wire Netting | 14 x 14 SWG38 16 x 16 SWG37 18 x 18 SWG36 18 x 14 SWG35 20 x 20 SWG34 | 3"x100" 4"x100" 1x25M 1.2x25M | Materials: 304 316 316L | ||||||
PVC Coated Wire Netting | 12x 12 | BWG31 BWG32 | As above | Different colors available. Used in petroluem, pipes wrapping. | |||||
14 x 14 | |||||||||
16 x 16 | |||||||||
18 x 18 | |||||||||
